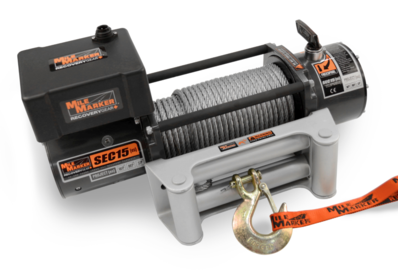

SEC15 (ES) 15,000 POUND WATERPROOF ELECTRIC WINCH
Introducing the lightest 15,000 pound winch in the industry! Weighing in at only 101 pounds, the ALL NEW SEC15 (ES) packs heavy duty power in its compact design. Featuring compact dimensions and 25% less weight than other winches in its class, the SEC15 (ES) mounts easily and is a great choice for full size trucks that are looking for big winch power without adding big winch weight to the vehicle’s front end. It is also completely sealed and submersible, thanks to our Project (ES) technology Fully Sealed Winches Fast Line Speeds Series Wound Motors Multi-Mount Solenoid Clockable Gear Housing Load Holding Brake Marine Grade Remoten Control Connectors Corrosion-Free Construction Submersible, 500 Amp Solenoid Part Number-76-50260W Rated line pull -15,000 lbs (6810 kgs), Single line Gear Train-3 Stage Planetary Gear Ratio-296 : 1 Motor-Series Wound, 5.5 hp, 12 Volt Control-Pendant Power-In, Power-Out Remote, 12’ (3.7 m) Dimensions (LxWxH)-22.44” X 6.29” X 11.00”n(570 mm X 160 mm X 280 mm) Cable-(Aircraft Cable) 10mm X 79”n(10 mm X 24 m) Drum Size-2.9” X 8.9” (75 mm X 228 mm ) Net weight-101 lbs (46 kg) Bolt Pattern-4 Bolt Pattern, 10” x4.5”n(254 mm X 114.3 mm)
Price: $975
Model: 76-50260W

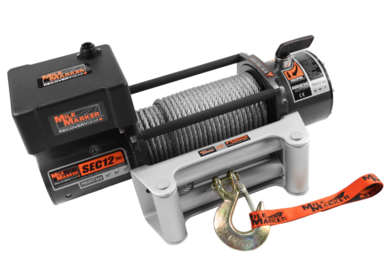

SEC12 (ES) 12,000 POUND WATERPROOF ELECTRIC WINCH
Heavy Duty Series Wound Motors and rugged planetary gear sets are the backbone of this expedition grade winch series. Featuring 19 seals throughout the assembly to keep any and all contaminants outside of the unit. The totally redesigned exterior features NO CHROME construction: stainless hardware, black zinc clutch handles, and anodized aluminum tie bars. Each roller fairlead is now coated with Dacromet®, a world-class metal coating known for its anti-corrosion properties. Mile Marker has also implemented a new submersible solenoid design with marine-grade connections at the Remote Control plug and socket. Fully Sealed Winches Fast Line Speeds Series Wound Motors Multi-Mount Solenoid Clockable Gear Housing Load Holding Brake Marine Grade Remoten Control Connectors Corrosion-Free Construction Submersible, 500 Amp Solenoid Part Number-76-50251BW Rated line pull-12000 lbs (5443 Kgs) Gear Train-3 Stage Planetary Gear Ratio-296:1 Motor-Series Wound, 4.8 hp (3.6 KW), 12 / 24 V Control Pendant-Power In, Power Out Remote, 12’ Dimensions (LxWxH)-22.25” X 6.25” X 8.00”n (565.2 mm X 158.8 mmX 203.2 mm) Cable-3/8” X 100’ (nominal 14,400 lbs, 6531 kg)n(9.53 mm X 30.5 m) Drum Size-2.5” X 9” (63.5 mm X 228.6 mm) Net weight-92 lbs (42 Kg)n Bolt Pattern-4 Bolt Pattern, 4.5” X 10”,n(114.3 mm X 254 mm)
Price: $823
Model: 76-50251BW

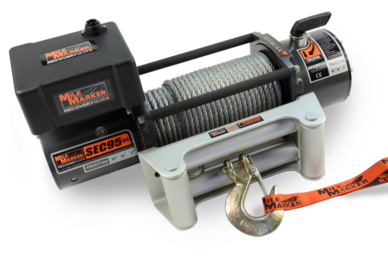

SEC9.5 (ES) 9,500 POUND WATERPROOF ELECTRIC WINCH
Heavy Duty Series Wound Motors and rugged planetary gear sets are the backbone of this expedition grade winch series. Featuring 19 seals throughout the assembly to keep any and all contaminants outside of the unit. The totally redesigned exterior features NO CHROME construction: stainless hardware, black zinc clutch handles, and anodized aluminum tie bars. Each roller fairlead is now coated with Dacromet®, a world-class metal coating known for its anti-corrosion properties. Mile Marker has also implemented a new submersible solenoid design with marine-grade connections at the Remote Control plug and socket. Fully Sealed Winches Fast Line Speeds Series Wound Motors Multi-Mount Solenoid Clockable Gear Housing Load Holding Brake Marine Grade Remote Control Connectors Corrosion-Free Construction Submersible, 500 Amp Solenoid Part Number 76-50246BW Rated line pull 9500 lbs (4309 Kgs) Gear Train-3 Stage Planetary Gear Ratio-212:1 Motor-Series Wound, 4.8 hp (3.6 KW), 12 / 24 V Control Pendant-Power In, Power Out Remote, 12’ Dimensions (LxWxH)-22.25” X 6.25” X 8.00”n(565.2 mm X 158.8 mm X 203.2 mm) Cable-3/8” X 100’ (nominal 14,400 lbs, 6531 kg)n(9.53 mm X 30.5 m) Drum Size-2.5” X 9” (63.5 mm X 228.6 mm) Net weight-92 lbs (42 Kg) Bolt Pattern-4 Bolt Pattern, 4.5” X 10”,n(114.3 mm X 254 mm)
Price: $732
Model: 76-50246BW

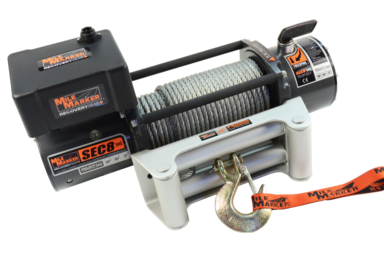

SEC8 (ES) 8,000 POUND WATERPROOF ELECTRIC WINCH
The fastest, best equipped 8000 pound winches in the industry. Boasting blazing line speeds, a high output series wound motor, and a Galvanized Roller Fairlead. These are the essential winches for overland explorers and competition rigs seeking to quench their adventurous thirst as they traverse the globe’s harshest conditions. Backed by Mile Marker’s two year warranty (one on the solenoid), and 30 years of manufacturing expertise. Fully Sealed Winches Fast Line Speeds Series Wound Motors Multi-Mount Solenoid Clockable Gear Housing Load Holding Brake Marine Grade Remote Control Connectors Corrosion-Free Construction Submersible, 500 Amp Solenoid Part Number-77-50141W Rated line pull -8000 lbs (3629 Kg) Gear Train-3 Stage Planetary Gear Ratio-152:1n Motor-Series Wound, 4.8 hp (3.6 KW), 12 Vn Control Pendant-Power-In, Power-Out Remote, 12’ (3.7 m)n Dimensions (LxWxH)-21.50” X 6.25” X 8.00”n(546.1 mm X 158.8 mm X 203.2 mm)n Cable-5/16” X 100’ (nominal 9,800 lbs, 4445 kg)n(7.94 mm X 30.5 m)n Drum Size-2.5” X 9” (63.5 mm X 228.6 mm)n Net weight-81 lbs (37 kg)n Bolt Pattern-4 Bolt Pattern, 4.5” X 10”,n(114.3 mm X 254 mm)
Price: $532
Model: 77-50141W
Mile Marker Winches
(855) 286-7379
call (855) 286-7379 to place your order!

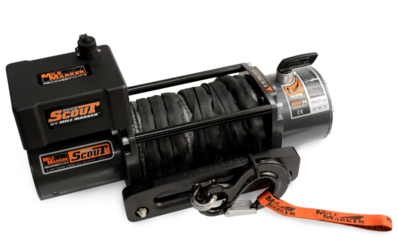

SEC8 Scout (ES) with Synthetic Rope
Introducing the SEC8 SCOUT (ES): The fastest, best equipped 8000 pound winch in the industry. Boasting blazing line speeds, a high output series wound motor, 96’of Synthetic Rope, and an anodized aluminum hawse fairlead, this is the essential winch for overland explorers and competition rigs seeking to quench their adventurous thirst as they traverse the globe’s harshest conditions. It is completely submersible. Backed by Mile Marker’s two year warranty (one on the solenoid), and 30 years of manufacturing expertise, if you are willing to go, let the SCOUT lead the way. Fully Sealed Winchesn Fast Line Speeds Series Wound Motors Multi-Mount Solenoid Clockable Gear Housing Load Holding Brake Marine Grade Remote Control Connectors Corrosion-Free Construction Submersible, 500 Amp Solenoid Rated line pull 8000 lbs (3629 Kg) Gear Train-3 Stage Planetary Gear Ratio-152:1 Motor-Series Wound, 4.8 hp (3.6 KW), 12 V Control Pendant-Power-In, Power-Out Remote, 12’ (3.7 m) Dimensions (LxWxH)-21.50” X 6.25” X 8.00”n(546.1 mm X 158.8 mm X 203.2 mm) Synthetic Rope-5/16” X 100’ (nominal 15,000 lbs, 6804 kg)n(7.94 mm X 28. 5 m) Drum Size-2.5” X 9” (63.5 mm X 228.6 mm) Net weight-57.5 lbs (26.1 kg) Bolt Pattern-4 Bolt Pattern, 4.5” X 10”,n(114.3 mm X 254 mm)
Price: $820
Model: 77-53141W
